中华普通外科学文献(电子版) ›› 2026, Vol. 20 ›› Issue (02) : 73 -78. doi: 10.3877/cma.j.issn.1674-0793.2026.02.001

述评

肝圆韧带在肝胆胰外科修复重建中的应用
刘志伟, 朱文涛, 陈强谱()
  1. 256600 滨州,滨州医学院附属医院胆胰外科
  • 收稿日期:2025-08-16 出版日期:2026-04-01
  • 通信作者: 陈强谱
  • 基金资助:
    山东省科学技术发展计划项目(2009GG10002047); 山东省省级临床重点专科学科建设基金资助项目(SLCZDZK-0701); 山东省省级临床重点专科胆胰肿瘤精品特色专科建设基金资助项目(SLCZDZK-2401)

Application of the ligamentum teres hepatis in hepatopancreatobiliary surgery repair and reconstruction

Zhiwei Liu, Wentao Zhu, Qiangpu Chen()

  1. Department of Hepatobiliary and Pancreatic Surgery, Binzhou Medical University Hospital, Binzhou 256600, China
  • Received:2025-08-16 Published:2026-04-01
  • Corresponding author: Qiangpu Chen
引用本文:

刘志伟, 朱文涛, 陈强谱. 肝圆韧带在肝胆胰外科修复重建中的应用[J/OL]. 中华普通外科学文献(电子版), 2026, 20(02): 73-78.

Zhiwei Liu, Wentao Zhu, Qiangpu Chen. Application of the ligamentum teres hepatis in hepatopancreatobiliary surgery repair and reconstruction[J/OL]. Chinese Archives of General Surgery(Electronic Edition), 2026, 20(02): 73-78.

肝圆韧带(LTH)是左脐静脉闭锁形成的存在潜在腔隙组织,具备取材便捷、生物相容性好及无免疫排斥反应等优势,近年来在肝胆胰外科修复重建领域的应用价值日益受到关注。LTH的临床应用涵盖了手术创面止血、胆管缺损修复、胆肠及胰肠吻合口加固以预防胆漏或胰漏、腹部血管修复重建等诸多领域。本文介绍了LTH的解剖及组织学特性,并对其在肝脏、胆道、胰腺以及腹部血管手术中的应用进行了讨论,展望其应用前景。

The ligamentum teres hepatis (LTH), a fibrous band with a potential lumen formed from the obliterated left umbilical vein, offers distinct advantages, including accessibility, good biocompatibility, and absence of immunogenic rejection. In recent years, its value in reconstructive surgery within hepatobiliary and pancreatic surgery has garnered increasing attention. The clinical applications of LTH encompass a wide spectrum, such as achieving surgical hemostasis, repairing biliary defects, reinforcing bilioenteric or pancreaticojejunal anastomoses to prevent bile or pancreatic fistula, and facilitating abdominal vascular reconstruction. This paper describes the anatomical and histological characteristics of LTH and discusses its applications in liver, biliary tract, pancreatic, and abdominal vascular surgery, while also exploring its prospects.

图1 肝圆韧带修剪及扩张 A. 扩张再通后的肝圆韧带;B. 扩张再通后肝圆韧带内壁;C. 修剪后备用的肝圆韧带

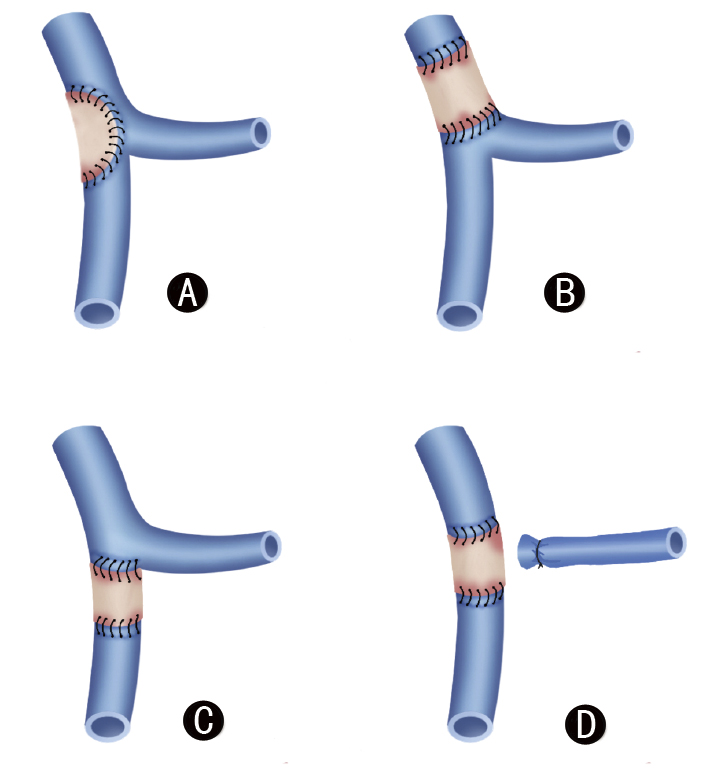

图2 肝圆韧带修复重建血管手术示意图 A. 肝圆韧带补片修补门静脉/肠系膜上静脉侧壁;B.肝圆韧带节段替代门静脉;C. 肝圆韧带节段替代肠系膜上静脉;D. 肝圆韧带节段替代门静脉-肠系膜上静脉结合部
图3 肝圆韧带修复重建血管术中图片 A. 肝圆韧带补片修补门静脉侧壁;B. 肝圆韧带节段替代门静脉;C. 肝圆韧带节段替代肠系膜上静脉;D. 肝圆韧带节段替代门静脉-肠系膜上静脉结合部;LTH:肝圆韧带;PV:门静脉;SMV:肠系膜上静脉;SV:脾静脉

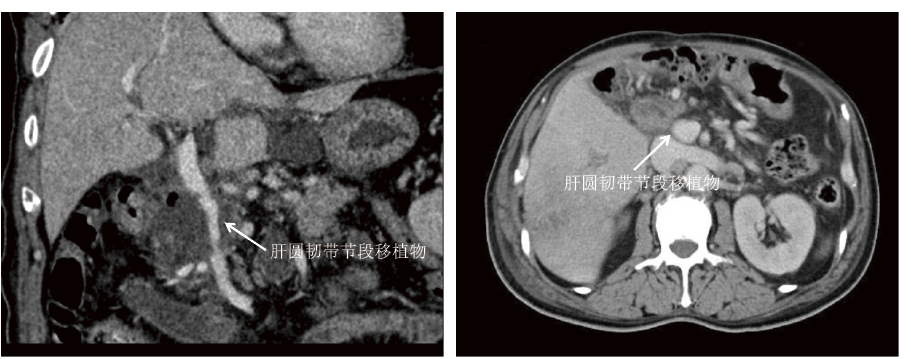

图4 肝圆韧带节段替代门静脉-肠系膜上静脉术后影像学图像
图5 利用肝圆韧带行分流术 A. 肠系膜上静脉-下腔静脉“H”形分流;B. 门静脉-下腔静脉H形分流;SMV:肠系膜上静脉;IVC:下腔静脉;PV:门静脉
[1]
朱文涛, 陈强谱, 管清海. 肝圆韧带在腹部手术修复与重建中的应用[J]. 中国现代普通外科进展, 2010, 13(8): 641-643.
[2]
依布拉音·艾尼, 蒋铁民, 温浩. 肝圆韧带在腹部手术中的应用及研究进展[J]. 中国实用外科杂志, 2023, 43(2): 211-215.
[3]
Baskaran V, Banerjee JK, Ghosh SR, et al. Applications of hepatic round ligament/falciform ligament flap and graft in abdominal surgery-a review of their utility and efficacy[J]. Langenbecks Arch Surg, 2021, 406(5): 1249-1281.
[4]
李明华, 应大君, 姚远, 等. 肝圆韧带修复胆道缺损的形态学基础[J]. 中国临床解剖学杂志, 1995, 13(1): 4-7.
[5]
朱文涛, 陈强谱, 张长习, 等. 成人肝圆韧带的解剖学与组织学观察[J/OL]. 中华临床医师杂志(电子版), 2011, 5(7): 2078-2080.
[6]
朱文涛, 陈强谱, 张兴元, 等. 成人肝圆韧带体外再通后的解剖学和组织学研究[J/OL]. 中华临床医师杂志(电子版), 2012, 6(13): 3631-3635.
[7]
朱文涛, 陈强谱, 管清海, 等. 成人再通肝圆韧带与自体门静脉及肠系膜上静脉长度及管径对比研究[J/OL]. 中华普通外科学文献(电子版), 2012, 6(5): 386-393.
[8]
管清海, 陈强谱, 张长习, 等. 肝圆韧带内腔形态及内皮化情况观察[J]. 山东医药, 2011, 51(34): 15-16.
[9]
Zhu W, Wang H, Guan Q, et al. Ligamentum teres hepatis as a graft for portal and/or superior mesenteric vein reconstruction: from bench to bedside[J]. World J Gastrointest Surg, 2023, 15(4): 674-686.
[10]
Zhu W, Song R, Cao X, et al. A comparison between the mechanical properties of the hepatic round ligament and the portal vein: A clinical implication on surgical reconstruction of the portal and superior mesenteric veins[J]. Comput Methods Biomech Biomed Engin, 2020, 23(13): 981-986.
[11]
杨小华, 钱海鑫, 秦磊. 肝圆韧带在腹部外科手术中的应用[J]. 苏州大学学报(医学版), 2009, 29(5): 1010-1011.
[12]
Oida T, Mimatsu K, Kawasaki A, et al. Fixation of the round ligament to the peritoneum and wrapping of the cut surface of the liver for prevention of early delayed gastric emptying after hepatic lateral segmentectomy[J]. Langenbecks Arch Surg, 2010, 395(6): 655-659.
[13]
蔡景修, 董家鸿, 别平, 等. 带蒂脐静脉瓣胆道修复[J]. 中华肝胆外科杂志, 2004, 10(2): 14-16.
[14]
李江海, 何友钊, 钱毅. 肝圆韧带修复治疗Mirizzi综合征Ⅱ型和Ⅲ型37例分析[J]. 肝胆胰外科杂志, 2009, 21(4): 300-301.
[15]
Dokmak S, Aussilhou B, Ragot E, et al. Reconstruction of bile duct injury and defect with the round ligament[J]. J Gastrointest Surg, 2017, 21(9): 1540-1543.
[16]
蒋汉城, 蒋水明, 安孟增, 等. 肝圆韧带修复肝门部胆管狭窄治疗肝胆管结石[J]. 中国临床新医学, 2015, 8(3): 233-235.
[17]
徐国辉, 黄国荣, 蔡联明, 等. 肝圆韧带浆膜面在胆道修补中的应用[J]. 中国普通外科杂志, 2024, 33(8): 1240-1250.
[18]
张艳林. 肝圆韧带间置行肠肝吻合在围肝门区肿瘤切除中的应用[J]. 中国老年学杂志, 2014, 34(22): 6354-6355.
[19]
Banerjee JK, Bharathi RS, Rao PP. Buttressing hepatic ojejunostomy’s with hepatic round ligament flap may be beneficial[J]. Pol Przegl Chir, 2017, 89(4): 5-10.
[20]
Sun D, Tan X, Gao F, et al. Use of an autologous liver round ligament flap zeros postoperative bile leak after curative resection of hilar cholangiocarcinoma[J]. PLoS One, 2015, 10(5): e0125977.
[21]
段建平, 罗序超, 叶斌, 等. 肝圆韧带与带蒂大网膜覆盖T管引流周围预防早期拔管胆漏的作用研究[J/OL]. 中华普外科手术学杂志(电子版), 2015, 9(2): 112-115.
[22]
Wang J, Lei K, You K, et al. Wrapping pancreaticojejunostomy using the ligamentum teres hepatis during laparoscopic pancreaticoduodenectomy: A propensity score matching analysis[J]. World J Surg Oncol, 2023, 21(1): 356.
[23]
Zizzo M, Ugoletti L, Morini A, et al. Pancreaticojejunostomy with or without reinforcement after pancreaticoduodenectomy: surgical technique of ligamentum teres hepatis wrap around pancreaticojejunostomy[J]. World J Surg Oncol, 2018, 16(1): 181.
[24]
王勇, 金浩, 陈石磊, 等. 肝圆韧带全程包裹肝门区动脉在预防腹腔镜胰十二指肠切除术后肝门区动脉性出血中的应用体会[J/OL]. 中华普通外科学文献(电子版), 2025, 19(2): 96-100.
[25]
Liu W, Li Z, Zhou C, et al. A ligamentum teres hepatis and falciform ligament ‘belt and braces’ approach in laparoscopic pancreaticoduodenectomy using a modified Blumgart anastomosis to minimize severe pancreatic fistula and post-operative complications[J]. Surg Oncol, 2024, 57: 102152.
[26]
Mech K, Wysocki A, Guzel T, et al. Can round ligament of the liver patch decrease the rate and the grade of postoperative pancreatic fistula?[J]. Pol Przegl Chir, 2016, 88(2): 63-67.
[27]
Scarpetti L, Bello RJ, Chung SK, et al. Utility of ligamentum teres hepatis flap reinforcement to prevent postoperative pancreatic fistulas in robotic distal pancreatectomy[J]. Am J Surg, 2024, 236: 115894.
[28]
Wu C, Xu W, Liu L, et al. Ligamentum teres hepatis patch enhances the healing of pancreatic fistula after distal pancreatectomy[J]. Hepatobiliary Pancreat Dis Int, 2013, 12(6): 651-655.
[29]
Yu Z, Wu X, Zhou X, et al. Ligamentum teres hepatis wrapping of the gastroduodenal artery stump for protection in total laparoscopic pancreaticoduodenectomy: A single-center experience[J]. J Int Med Res, 2023, 51(8): 655718080.
[30]
Wang Z, Wang Y, Zhu C, et al. Prevention of postpancreatectomy hemorrhage after laparoscopic pancreaticoduodenectomy by wrapping ligamentum teres hepatis surrounding hepatic portal artery[J]. Sci Rep, 2024, 14(1): 18332.
[31]
You J, Wu S, Fu Y, et al. Wrapping of the hepatic artery using the round ligament during laparoscopic pancreatoduodenectomy to prevent postpancreatectomy haemorrhage[J]. Br J Surg, 2022, 109(9): 882-883.
[32]
陈强谱, 欧琨, 管清海, 等. 肝圆韧带重建门静脉/肠系膜上静脉的可行性探讨[J]. 山东医药, 2006, 50(36): 7-8.
[33]
王海涛. 成人肝圆韧带内皮细胞的分布及功能的研究[D]. 滨州: 滨州医学院, 2013: 25–30.
[34]
Wei Q, Chen Q, Guan Q, et al. Repair of the portal vein using a hepatic ligamentum teres patch for laparoscopic pancreatoduodenectomy: A case report[J]. World J Clin Cases, 2019, 7(18): 2879-2887.
[35]
Cai Y, Li Y, Gao P, et al. Laparoscopic pancreaticoduodenectomy with major venous resection and reconstruction with repassed round ligament: A case report[J]. Ann Transl Med, 2018, 6(11): 213.
[36]
陈强谱. 胰十二指肠联合肠系膜上静脉切除肝圆韧带重建术[J/OL]. 中华普通外科学文献(电子版), 2016, 10(3).
[37]
Zhang Z, Zhou B, Zheng X, et al. Use of the peritoneum or the round ligament of the liver in radical surgery for pancreatic cancer[J]. Gland Surg, 2021, 10(11): 3075-3081.
[38]
陈强谱, 欧琨, 管清海, 等. 肝圆韧带桥式分流联合断流术治疗门静脉高压症[J]. 滨州医学院学报, 2005, 28(5): 321-323.
[39]
Shinkai M, Ohhama Y, Honda S, et al. Recanalized umbilical vein as a conduit for mesenterico/porto-Rex bypass for patients with extrahepatic portal vein obstruction[J]. Pediatr Surg Int, 2011, 27(3): 315-319.
[40]
Tang R, Yu L, Wu G, et al. Modified Meso-Rex bypass with umbilical vein recanalization and intra-operative stenting[J]. Langenbecks Arch Surg, 2021, 406(7): 2553-2562.
[41]
陈强谱, 张兴元, 管清海, 等. 利用肝圆韧带补片修复重建下腔静脉二例[J/OL]. 中华临床医师杂志(电子版), 2009, 3(12): 2075-2077.
[42]
Ikegami T, Shimada M, Imura S, et al. Beneficial use of the round ligament as a patch graft for vena cava reconstruction[J]. J Hepatobiliary Pancreat Surg, 2008, 15(6): 581-584.
[43]
Takahashi M, Saiura A, Takahashi Y. The usefulness of patch repair using the repermeabilized umbilical vein of the round ligament for hepatobiliary malignancies[J]. World J Surg, 2017, 41(11): 2813-2816.
[44]
Toshima T, Ikegami T, Matsumoto Y, et al. One-step venous reconstruction using the donor’s round ligament in right-lobe living-donor liver transplantation[J]. Surg Today, 2015, 45(4): 522-525.
[45]
Toshima T, Itoh S, Morita K, et al. Feasibility of venous cuff using an open round ligament or inferior mesenteric vein around the hepatic vein for a left lobe graft in living-donor liver transplantation[J]. Surg Today, 2024, 54(7): 812-816.
[46]
Soejima Y, Shimada M, Suehiro T, et al. Reconstruction of the middle hepatic vein tributaries using the recipient’s recanalized umbilical vein in right-lobe living-donor liver transplantation[J]. Surgery, 2006, 139(3): 442-445.
[47]
Jiang T, Ran B, Guo Q, et al. Use of the ligamentum teres hepatis for outflow reconstruction during ex vivo liver resection and autotransplantation in patients with hepatic alveolar echinococcosis: A case series of 24 patients[J]. Surgery, 2021, 170(3): 822-830.
