中华普通外科学文献(电子版) ›› 2026, Vol. 20 ›› Issue (04) : 257 -264. doi: 10.3877/cma.j.issn.1674-0793.2026.04.007

论著

甲状腺癌术后并发低钙血症的发病风险预测模型构建
罗文勇1,2, 黄文龙1, 阮沁桐1, 蔡莹4, 王欣3, 吴柱国1, 王利玲3, 于海兵1,()
  1. 1 523808 东莞,广东医科大学公共卫生学院附属东莞第一医院 省部共建中亚高发病成因与防治国家重点实验室 东莞市慢性病防治重点实验室流行病与卫生统计学系
    2 516000 惠州,广东医科大学附属惠州第一医院(惠州市第一人民医院)普外科
    3 518100 深圳,广东医科大学附属医院集团深圳宝安中心医院科教科
    4 814000 海东,海东市卫生健康服务中心
  • 收稿日期:2026-02-10 出版日期:2026-08-01
  • 通信作者: 于海兵
  • 基金资助:
    省部共建中亚高发病成因与防治国家重点实验室广东工作站联合基金项目(SKL-HIDCA-2024-GD7B); 广东省基础与应用基础研究基金省市联合基金项目(2024A1515140126); 广东省基础与应用基础研究基金自然科学基金项目(2022A1515012407); 东莞市社会发展科技(重点)项目(20221800905642); 广东医科大学临床+基础科技创新专项计划项目(GDMULCJC2024148,GDMULCJC2024142,GDMULCJC2025183); 广东省卫生经济学会2024年科研课题项目(2024-WJHX-03)

Construction of risk prediction models for postoperative hypocalcemia in thyroid cancer patients

Wenyong Luo1,2, Wenlong Huang1, Qintong Ruan1, Ying Cai4, Xin Wang3, Zhuguo Wu1, Liling Wang3, Haibing Yu1,()

  1. 1 Department of Epidemiology and Medical Statistics, School of Public Health, the First Affiliated Hospital of Dongguan, State Key Laboratory of Etiology and Prevention of High-Incidence Diseases in Central Asia (Co-constructed by the Ministry of Education and Provincial Government), Dongguan Key Laboratory of Chronic Disease Prevention and Control, Guangdong Medical University, Dongguan 523808, China
    2 Department of General Surgery, the First Affiliated Huizhou Hospital of Guangdong Medical University (Huizhou City No.1 People’s Hospital), Huizhou 516000, China
    3 Department of Science and Education, Shenzhen Bao’an Central Hospital, Affiliated Hospital Group of Guangdong Medical University, Shenzhen 518100, China
    4 Haidong Municipal Health Service Center, Haidong 814000, China
  • Received:2026-02-10 Published:2026-08-01
  • Corresponding author: Haibing Yu
引用本文:

罗文勇, 黄文龙, 阮沁桐, 蔡莹, 王欣, 吴柱国, 王利玲, 于海兵. 甲状腺癌术后并发低钙血症的发病风险预测模型构建[J/OL]. 中华普通外科学文献(电子版), 2026, 20(04): 257-264.

Wenyong Luo, Wenlong Huang, Qintong Ruan, Ying Cai, Xin Wang, Zhuguo Wu, Liling Wang, Haibing Yu. Construction of risk prediction models for postoperative hypocalcemia in thyroid cancer patients[J/OL]. Chinese Archives of General Surgery(Electronic Edition), 2026, 20(04): 257-264.

目的

构建并比较多种甲状腺癌术后并发低钙血症风险预测模型,筛选核心预测因子,为临床早期预警与精准干预提供科学工具,优化患者围手术期管理。

方法

回顾性纳入2022年4月1日至2025年8月31日惠州市第一人民医院收治的767例分化型甲状腺癌手术患者,以术后是否发生低钙血症为结局事件。通过最小绝对收缩和选择算子(LASSO)回归筛选核心预测因子,基于以上因子构建多变量列线图、决策树及极端梯度提升(XGBoost)3种预测模型。采用分层抽样(8∶2)将样本集划分训练集与测试集,以准确性、精准率、召回率、F1分数及受试者操作特征曲线下面积(AUC)评估模型性能,并通过SHAP方法解析XGBoost模型的变量贡献。

结果

767例患者中,233例(30.4%)发生术后低钙血症。LASSO回归筛选出年龄、体重指数、术后甲状旁腺激素(PTH)、手术范围、复发风险、甲状腺微小乳头状癌、肿瘤数量、糖尿病史及甲状腺炎症9项核心预测因子。3种模型均展现良好的判别能力(AUC≥0.828):XGBoost模型的AUC最高(0.851),但召回率最低(0.435);决策树模型召回率(0.587)和F1分数(0.651)最优;列线图模型准确性(0.816)和精准率(0.781)最高,且实现了个体化风险的可视化便捷评估。SHAP分析验证术后PTH和手术范围是贡献度最高的预测因子。

结论

本研究筛选的9项核心预测因子对甲状腺癌术后低钙血症的发生具有重要预测价值。构建的列线图模型兼具准确性、易用性和临床可解释性,可有效辅助医师识别高危患者并制定个体化干预策略,对改善患者预后具有重要意义。

Objective

To develop and compare multiple risk prediction models for postoperative hypocalcemia in patients with thyroid cancer, identify core predictive factors, and provide a scientific tool for early clinical warning and precision intervention to optimize perioperative management.

Methods

A total of 767 patients who underwent surgery for differentiated thyroid cancer were retrospectively enrolled from April 1, 2022 to August 31, 2025 in Huizhou First People’s Hospital, with the occurrence of postoperative hypocalcemia as the primary outcome. Core predictors were selected using least absolute shrinkage and selection operator (LASSO) regression. Based on these predictors, three prediction models-a multivariate nomogram, a decision tree, and an extreme gradient boosting (XGBoost) model-were constructed. The dataset was split into training and testing sets at an 8∶2 ratio using stratified sampling. Model performance was evaluated using accuracy, precision, recall, F1 score, and the area under the receiver operating characteristic curve (AUC). SHapley additive explanations (SHAP) values were employed to interpret feature contributions in the XGBoost model.

Results

Among the 767 patients, 233 (30.4%) developed postoperative hypocalcemia. LASSO regression identified nine core predictors: age, body mass index (BMI), postoperative parathyroid hormone (PTH) level, extent of surgery, recurrence risk, presence of papillary microcarcinoma, number of tumors, history of diabetes mellitus, and thyroiditis. All three models demonstrated good discriminative ability (AUC≥0.828). The XGBoost model achieved the highest AUC (0.851) but the lowest recall (0.435). The decision tree model showed the best recall (0.587) and F1 score (0.651). The nomogram model yielded the highest accuracy (0.816) and precision (0.781), and enabled convenient, visualized individualized risk assessment. SHAP analysis confirmed that postoperative PTH level and extent of surgery were the most influential predictors.

Conclusions

The nine core predictors identified in this study hold significant value for predicting postoperative hypocalcemia in thyroid cancer patients. Among the models evaluated, the nomogram offers the best balance of accuracy, usability, and clinical interpretability, making it the optimal tool for clinical application. It can effectively assist clinicians in identifying high-risk patients and implementing personalized interventions, thereby improving patient outcomes.

表1 低钙血症组与正常组患者基线特征的比较

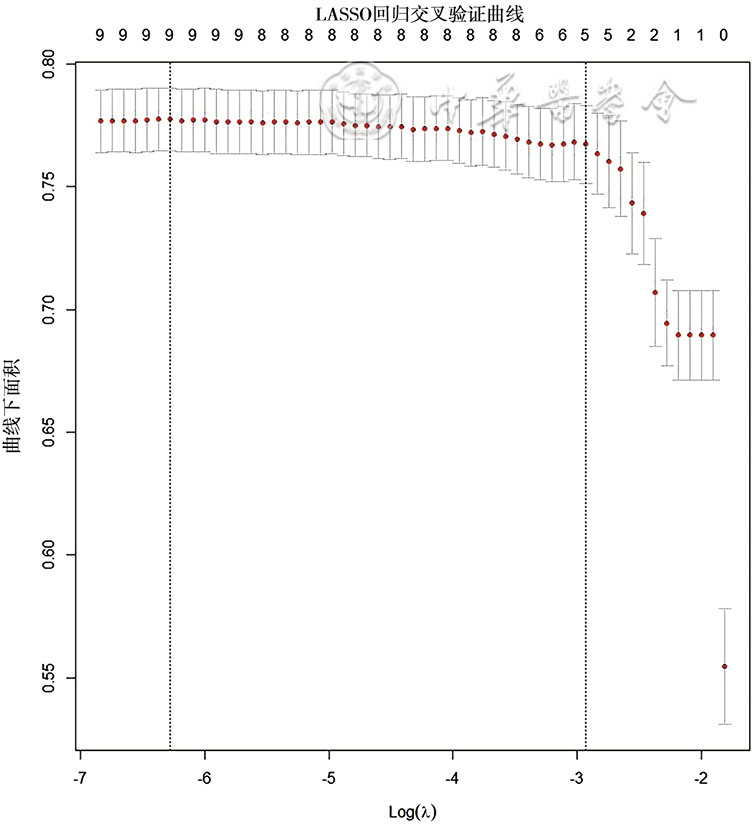

图1 10次交叉验证筛选模型优化参数

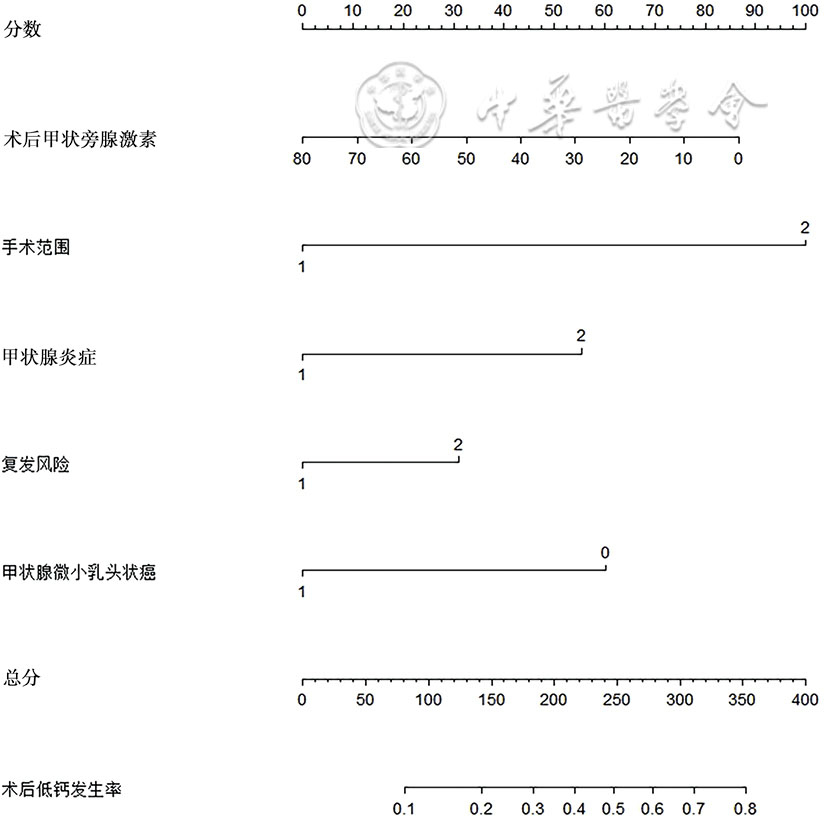

图2 甲状腺癌患者术后低钙血症风险列线图预测模型

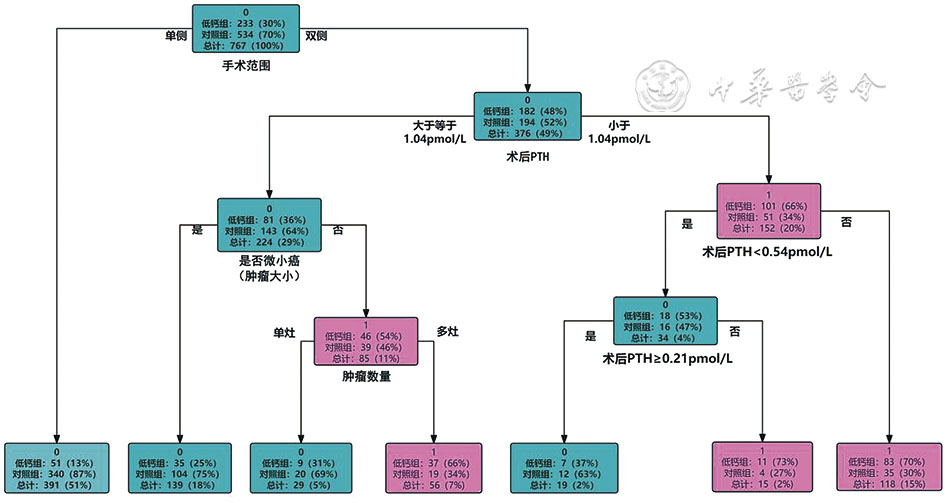

图3 甲状腺癌患者术后低钙血症预测决策树

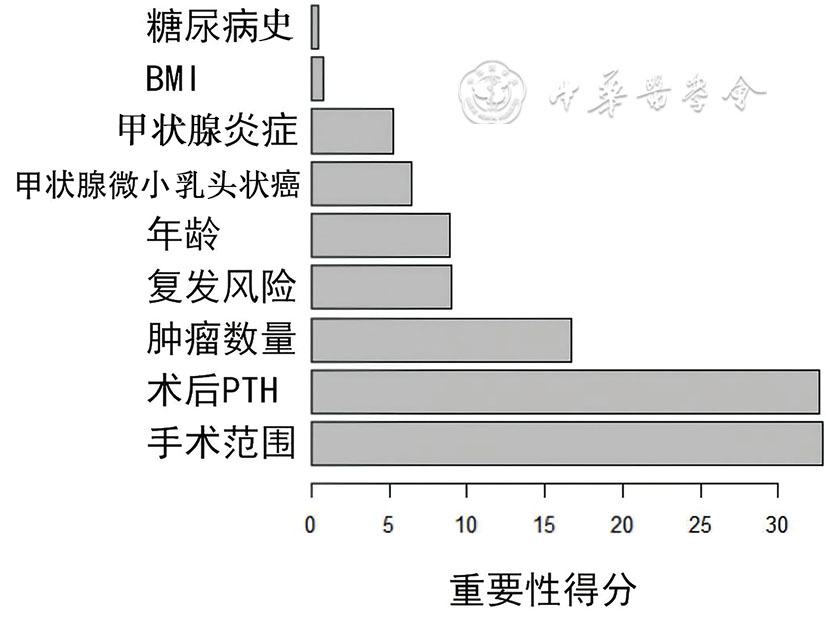

图4 决策树变量重要性 甲状旁腺激素(PTH);体重指数(BMI)

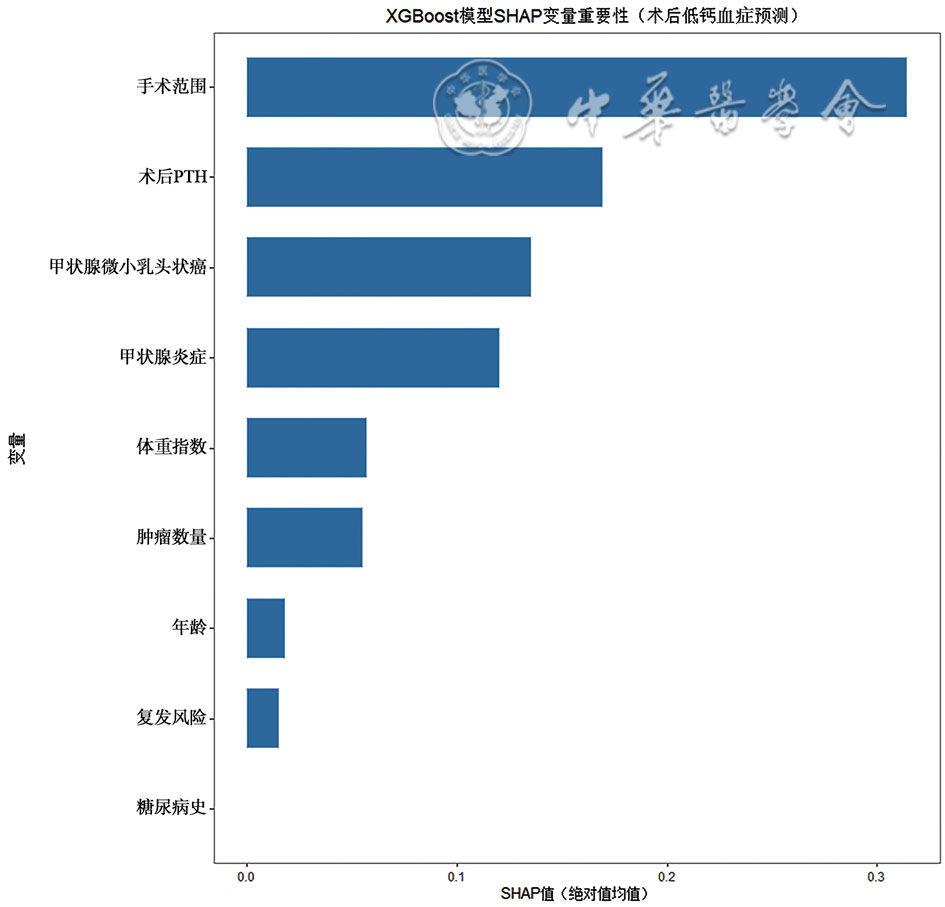

图5 基于XGBoost模型的SHAP特征排序
表2 预测模型性能指标

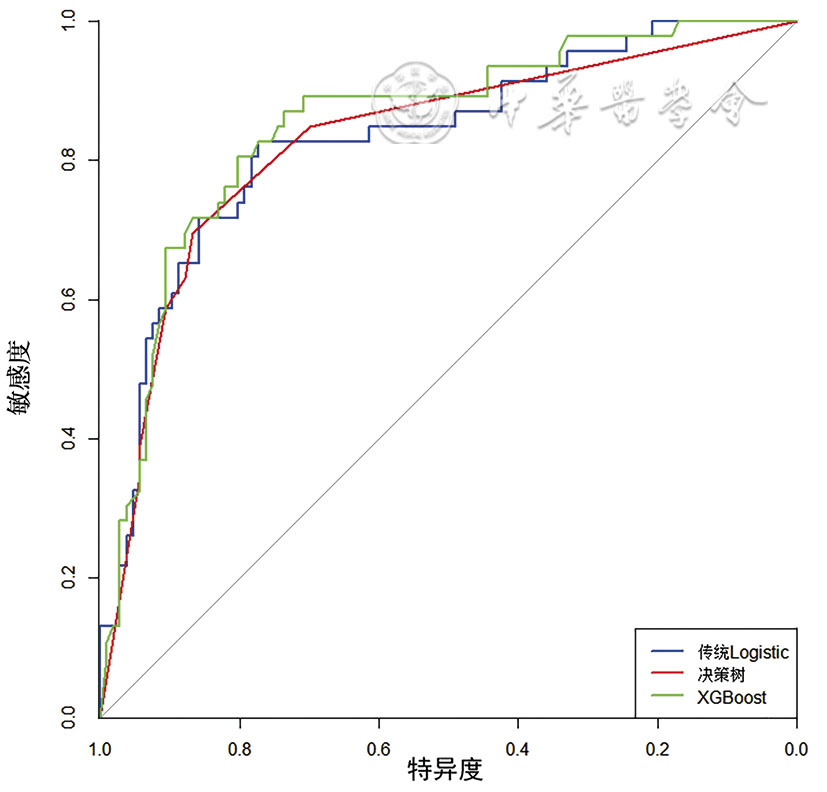

图6 各模型受试者操作特征曲线
[1]
Baloch Z, LiVolsi VA. Fifty years of thyroid pathology: concepts and developments[J]. Hum Pathol, 2020, 95: 46–54.
[2]
Sung H, Ferlay J, Siegel RL, et al. Global Cancer Statistics 2020: GLOBOCAN estimates of incidence and mortality worldwide for 36 cancers in 185 countries[J]. CA Cancer J Clin, 2021, 71(3): 209–249.
[3]
Patel KN, Yip L, Carty SE. Response to the comment on “The American Association of Endocrine Surgeons Guidelines for the definitive surgical management of thyroid disease in adults”[J]. Ann Surg, 2021, 274(6): e746–e747.
[4]
吴培信, 陈子彪, 揭霞, 等. 分化型甲状腺癌患者血清甲状腺球蛋白和促甲状腺激素的表达及意义[J]. 广东医科大学学报, 2019, 37(3): 289–291.
[5]
陆艳, 何奕卉, 周东升, 等. 达芬奇机器人与腔镜甲状腺癌根治术的对比研究[J]. 腹腔镜外科杂志, 2023, 28(3): 171–175.
[6]
Julian MT, Balibrea JM, Granada ML, et al. Intact parathyroid hormone measurement at 24 hours after thyroid surgery as predictor of parathyroid function at long term[J]. Am J Surg, 2013, 206(5): 783–789.
[7]
Noordzij JP, Lee SL, Bernet VJ, et al. Early prediction of hypocalcemia after thyroidectomy using parathyroid hormone: An analysis of pooled individual patient data from nine observational studies[J]. J Am Coll Surg, 2007, 205(6): 748–754.
[8]
Palop IF, Martinez CF, Gimenez MJS, et al. Determination of calcium and parathyroid hormone levels following hemithyroidectomy[J]. Thyroid Res, 2021, 14(1): 13.
[9]
Khan S, Khan AA. Hypoparathyroidism: diagnosis, management and emerging therapies[J]. Nat Rev Endocrinol, 2025, 21(6): 360–374.
[10]
Lorente-Poch L, Sancho JJ, Munoz-Nova JL, et al. Defining the syndromes of parathyroid failure after total thyroidectomy[J]. Gland Surg, 2015, 4(1): 82–90.
[11]
Mannoh EA, Thomas G, Baregamian N, et al. Assessing intraoperative laser speckle contrast imaging of parathyroid glands in relation to total thyroidectomy patient outcomes[J]. Thyroid, 2021, 31(10): 1558–1565.
[12]
Paras C, Keller M, White L, et al. Near-infrared autofluorescence for the detection of parathyroid glands[J]. J Biomed Opt, 2011, 16(6): 67012.
[13]
Mcwade MA, Paras C, White LM, et al. A novel optical approach to intraoperative detection of parathyroid glands[J]. Surgery, 2013, 154(6): 1371–1377.
[14]
Thomas G, Squires MH, Metcalf T, et al. Imaging or fiber probe-based approach? Assessing different methods to detect near infrared autofluorescence for intraoperative parathyroid identification[J]. J Am Coll Surg, 2019, 229(6): 596–608.
[15]
Cao B, Wu G. Risk factors for hypocalcemia after total thyroidectomy: A narrative review[J]. PeerJ, 2025, 13: e19808.
[16]
曾熘海, 吴海燕, 林威, 等. 分化型甲状腺癌术后低钙血症的危险因素分析及风险预测模型构建[J]. 现代实用医学, 2024, 36(1): 91–94.
[17]
Eismontas V, Slepavicius A, Janusonis V, et al. Predictors of postoperative hypocalcemia occurring after a total thyroidectomy: results of prospective multicenter study[J]. BMC Surg, 2018, 18(1): 55.
[18]
Erbil Y, Barbaros U, Temel B, et al. The impact of age, vitamin D (3) level, and incidental parathyroidectomy on postoperative hypocalcemia after total or near total thyroidectomy[J]. Am J Surg, 2009, 197(4): 439–446.
[19]
Palermo A, Mangiameli G, Tabacco G, et al. PTH (1–34) for the primary prevention of postthyroidectomy hypocalcemia: the THYPOS trial[J]. J Clin Endocrinol Metab, 2016, 101(11): 4039–4045.
[20]
Promberger R, Ott J, Kober F, et al. Normal parathyroid hormone levels do not exclude permanent hypoparathyroidism after thyroidectomy[J]. Thyroid, 2011, 21(2): 145–150.
[21]
Privitera F, Centonze D, La Vignera S, et al. Risk factors for hypoparathyroidism after thyroid surgery: A single-center study[J]. J Clin Med, 2023, 12(5): 1956.
[22]
Biello A, Kinberg EC, Menon G, et al. Thyroidectomy[M]. Treasure Island (FL): StatPearls Publishing, 2026.
[23]
Gimm O, Brauckhoff M, Thanh PN, et al. An update on thyroid surgery[J]. Eur J Nucl Med Mol Imaging, 2002, 29 Suppl 2: S447–S452.
[24]
Kujdowicz M, Taczanowska-Niemczuk A, Kiszka-Wiłkojć A, et al. Diagnostic and therapeutic strategies for intraoperative and postoperative hypocalcemia in pediatric thyroidectomy patients: A single-center experience[J]. J Pediatr Surg, 2025, 60(11): 162627.
[25]
Aweeda M, Fassler C, Habib DRS, et al. Risk factors and rates for hypocalcemia after pediatric thyroidectomy: A systematic review and Meta-analysis[J]. OTO Open, 2025, 9(2): e70130.
[26]
Cojic M, Kocic R, Klisic A, et al. The effects of Vitamin D supplementation on metabolic and oxidative stress markers in patients with type 2 diabetes: A 6-month follow up randomized controlled study[J]. Front Endocrinol (Lausanne), 2021, 12: 610893.
[27]
Wang XF, Yu JJ, Wang XJ, et al. The associations between hypovitaminosis D, higher PTH levels with bone mineral densities, and risk of the 10-year probability of major osteoporotic fractures in Chinese patients with T2DM[J]. Endocr Pract, 2018, 24(4): 334–341.
[28]
Remer LF, Linhares SM, Scola WH, et al. Transient hypocalcemia after total thyroidectomy: the obesity paradox at work?[J]. J Surg Res, 2022, 278: 93–99.
[29]
Liao K, Wei X, Chen Y, et al. Development and validation of a nomogram prediction model for factors influencing 131I-refractory Graves’ hyperthyroidism[J]. Front Endocrinol (Lausanne), 2025, 16: 1628226.
[30]
Zhong L, Xu Z, Liu X, et al. Rapid screening of depression and anxiety in outpatients: symptom-based nomograms for early identification from gastrointestinal presentations[J]. J Affect Disord, 2026, 394(Pt B): 120580.
[31]
Verbakel JY, Burvenich R, D’hulster E, et al. A clinical decision tool including a decision tree, point-of-care testing of CRP, and safety-netting advice to guide antibiotic prescribing in acutely ill children in primary care in Belgium (ARON): A pragmatic, cluster-randomised, controlled trial[J]. Lancet, 2025, 406(10512): 1599–1610.
[32]
Wu L, Honing J, Wu A, et al. Clinical decision tree for optimizing endoscopic assessment of signet ring cell carcinoma in hereditary diffuse gastric cancer surveillance[J]. Endoscopy, 2025, 57(10): 1118–1127.
[33]
Liang D, Wang L, Zhong P, et al. Perspective: global burden of iodine deficiency: insights and projections to 2050 using XGBoost and SHAP[J]. Adv Nutr, 2025, 16(3): 100384.
[34]
Han Y, Xie X, Qiu J, et al. Early prediction of sepsis associated encephalopathy in elderly ICU patients using machine learning models: A retrospective study based on the MIMIC-Ⅳ database[J]. Front Cell Infect Microbiol, 2025, 15: 1545979.
[35]
Ge Y, Zhang X, Ding X, et al. Diagnostic value of transcranial ultrasonography and clinical features for Parkinson’s disease based on XGBoost model and SHAP visualization analysis: A retrospective study[J]. Eur Radiol, 2026, 36(1): 408–419.
