中华普通外科学文献(电子版) ›› 2026, Vol. 20 ›› Issue (05) : 330 -339. doi: 10.3877/cma.j.issn.1674-0793.2026.05.008

综述

结直肠癌肝转移免疫微环境的器官特异性机制整合与展望
胡青1, 周引涵2, 塔来提·吐尔干1, 阿依甫汗·阿汗1,†()
  1. 1 830054 乌鲁木齐,新疆医科大学第一附属医院消化血管外科中心肝胆包虫病外科
    2 830054 乌鲁木齐,新疆医科大学第一附属医院肿瘤中心
  • 收稿日期:2025-11-30 出版日期:2026-10-01
  • 通信作者: 阿依甫汗·阿汗

Integration and prospect of organ-specific mechanisms of immune microenvironment in colorectal liver metastasis

Qing Hu1, Yinhan Zhou2, Tuergan Talaiti1, Ahan Ayifuhan1,†()

  1. 1 Department of Hepatobiliary and Hydatid Disease, Digestive and Vascular Center, the First Affiliated Hospital of Xinjiang Medical University, Urumqi 830054, China
    2 The Cancer Center, the First Affiliated Hospital of Xinjiang Medical University, Urumqi 830054, China
  • Received:2025-11-30 Published:2026-10-01
  • Corresponding author: Ahan Ayifuhan
引用本文:

胡青, 周引涵, 塔来提·吐尔干, 阿依甫汗·阿汗. 结直肠癌肝转移免疫微环境的器官特异性机制整合与展望[J/OL]. 中华普通外科学文献(电子版), 2026, 20(05): 330-339.

Qing Hu, Yinhan Zhou, Tuergan Talaiti, Ahan Ayifuhan. Integration and prospect of organ-specific mechanisms of immune microenvironment in colorectal liver metastasis[J/OL]. Chinese Archives of General Surgery(Electronic Edition), 2026, 20(05): 330-339.

结直肠癌肝转移(CRLM)的器官特异性免疫抑制微环境是免疫治疗抵抗的关键诱因。本文基于单细胞RNA测序、空间转录组学等技术发现,CRLM病灶中高表达分泌型磷蛋白1(SPP1+)巨噬细胞与癌症相关成纤维细胞(CAF)形成功能轴,通过代谢重编程、细胞外基质重塑及信号交叉对话构建免疫抑制生态位,伴随髓系细胞扩增、T细胞耗竭及免疫检查点分子上调。当前领域仍存在核心争议与空白:SPP1+巨噬细胞“库普弗细胞衍生”与“单核细胞衍生”的发育路径争议尚未明确,代谢干预的临床前疗效与临床转化差距亟待缩小,调节性T细胞的T细胞受体(TCR)克隆型起源及白细胞介素(IL)-10浓度梯度与CD8+ T细胞耗竭的定量关系仍不清晰。针对上述机制,本文梳理了精准靶向免疫抑制细胞、代谢-免疫协同干预等策略,并展望多组学指导的个体化治疗方向,为克服CRLM的免疫治疗困境提供理论支撑。

The organ-specific immunosuppressive microenvironment of colorectal liver metastasis (CRLM) is a key cause of immunotherapy resistance. Based on single-cell RNA sequencing and spatial transcriptomics, we found that SPP1+ macrophages formed a functional axis with cancer-associated fibroblast (CAF) in CRLM foci, and constructed an immunosuppressive niche through metabolic reprogramming, extracellular matrix remodeling, and signal cross-talk. It is accompanied by myeloid cell expansion, T cell exhaustion, and up-regulation of immune checkpoint molecules. There are still core controversies and gaps in the current field: the developmental pathway of “Kupffer cell derivation” and “monocyte derivation” of SPP1+ macrophages is still controversial. The gap between the preclinical efficacy and clinical transformation of metabolic intervention needs to be urgently narrowed. The origin of TCR clonotypes of Tregs and the quantitative relationship between interleukin (IL-10) concentration gradient and CD8+ T cell depletion are still unclear. In view of the above mechanisms, this paper reviews the strategies such as precise targeting of immunosuppressive cells and synergistic metabolic-immune intervention, and prospects the direction of multi-omics guided individualized treatment, which provides theoretical support for overcoming the dilemma of immunotherapy for CRLM.

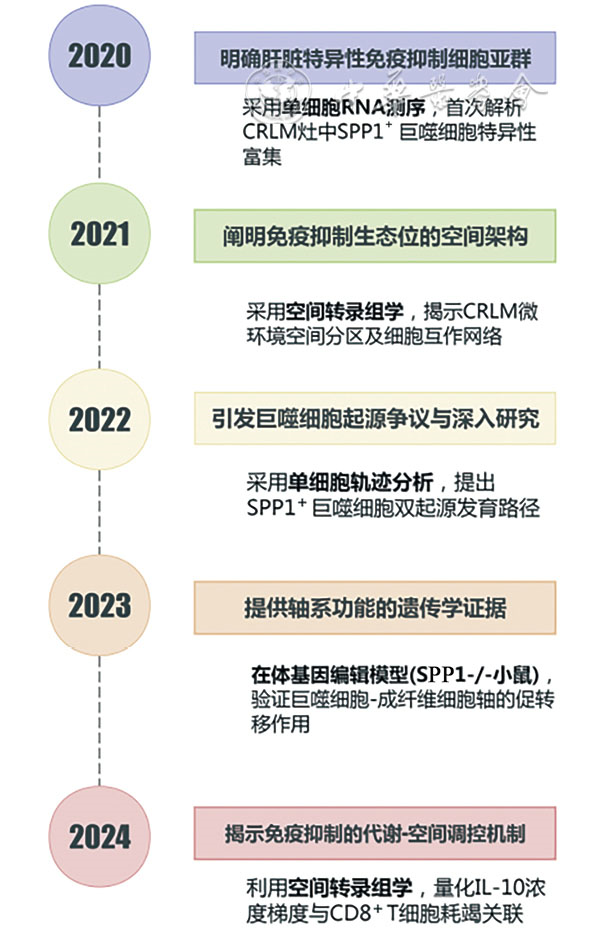

图1 结直肠癌肝转移的里程碑式研究时间线展示 结直肠癌肝转移(CRLM);白细胞介素(IL);分泌型磷蛋白1(SPP1)

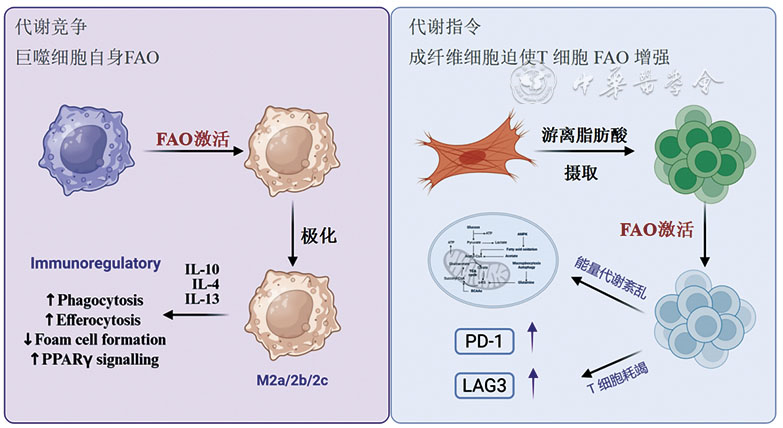

图2 结直肠癌肝转移中FAO介导免疫抑制的双重机制示意图 脂肪酸氧化(FAO);白细胞介素(IL);程序性死亡蛋白1(PD-1);淋巴细胞激活基因3(LAG3);吞噬作用(Phagocytosis);胞饮作用(Efferocytosis);泡沫细胞形成(Foam cell formation);PPARγ信号通路(PPARγ signalling)
表1 结直肠癌肝转移相关机制与治疗策略等级表
机制/策略类别 具体机制/策略 转化阶段(验证等级) 关键证据来源
巨噬细胞靶向干预 抗SPP1联合抗PD-1抗体治疗 (3) 小鼠模型显示联合治疗可抑制肝转移并恢复T细胞功能[27]
G-sHDL清除Mono-M2巨噬细胞 (3) 小鼠模型中G-sHDL显著抑制肝转移并增强抗PD-L1疗效[18]
DAPK1抑制剂联合抗PD-1疗法 (3) 小鼠皮下及脾-肝转移模型中DAPK1抑制增强抗PD-1疗效[28]
代谢干预策略 EFNB2/EPHB4/LDLR胆固醇摄取轴抑制 (3) 小鼠模型中阻断该轴可延长高胆固醇饮食小鼠生存期[9]
FAO抑制剂(依莫克舍)增强抗血管生成疗效 (3) 小鼠模型中依莫克舍逆转贝伐珠单抗耐药[10]
SHK@HA-MPDA纳米颗粒抑制PKM2 (3) 小鼠模型中纳米颗粒抑制肝转移并逆转免疫抑制[38]
青蒿素抑制CHSY1增强抗PD-1疗效 (3) 小鼠模型中青蒿素联合抗PD-1显著抑制肝转移[29]
局部治疗联合免疫 微波消融联合LAG3/TIGIT阻断 (3) 小鼠MC38模型中微波消融联合免疫阻断显著延缓肿瘤进展[12-13]
纳米药物NCG联合抗PD-L1抗体 (3) 小鼠肝转移模型中NCG联合抗PD-L1显著抑制肿瘤生长[30]
钇-90放射栓塞诱导免疫调节 (2) 临床样本分析显示放射栓塞可诱导对侧肿瘤免疫应答[31]
递送系统与细胞治疗 慢病毒载体递送IFN-α至肝脏巨噬细胞 (3) 小鼠模型中工程化巨噬细胞递送IFN-α延缓肝转移[14]
CAR-T细胞门静脉递送治疗CRLM (3) 小鼠PDX模型中区域递送CAR-T细胞显著抑制肝转移[33]
细胞外囊泡递送siRNA靶向CCL24 (3) 小鼠模型中下调CCL24增强抗血管生成治疗敏感性[34]
中性粒细胞膜包裹纳米颗粒递送药物 (3) 小鼠模型中纳米颗粒清除瘤内细菌并抑制转移 [39]
多组学指导的个体化策略 基于CXCL14表达水平的免疫浸润分析 (2) 临床样本转录组分析显示CXCL14高表达与免疫细胞浸润正相关[35]
TGF-β评分模型预测药物敏感性 (2) TCGA数据结合临床样本验证TGFBscore与药物敏感性相关[36]
SPP1等关键基因构建CRLM识别模型 (2) 公共数据与临床样本验证SPP1等基因与肝转移相关[40]
SMAD4突变与STAT3通路耐药机制 (2) 临床样本基因组与转录组分析揭示SMAD4突变导致化疗耐药[37]
[1]
Sathe A, Mason K, Grimes SM, et al. Colorectal cancer metastases in the liver establish immunosuppressive spatial networking between tumor-associated SPP1+ macrophages and fibroblasts[J]. Clin Cancer Res, 2023, 29(1): 244–260.
[2]
Geng Y, Feng J, Huang H, et al. Single-cell transcriptome analysis of tumor immune microenvironment characteristics in colorectal cancer liver metastasis[J]. Ann Transl Med, 2022, 10(21): 1170.
[3]
Wood CS, Pennel KAF, Leslie H, et al. Spatially resolved transcriptomics deconvolutes prognostic histological subgroups in patients with colorectal cancer and synchronous liver metastases[J]. Cancer Res, 2023, 83(8): 1329–1344.
[4]
Fakih M, Wang C, Sandhu J, et al. Immunotherapy response in microsatellite stable metastatic colorectal cancer is influenced by site of metastases[J]. Eur J Cancer, 2024, 196: 113437.
[5]
Shiri AM, Zhang T, Bedke T, et al. IL-10 dampens antitumor immunity and promotes liver metastasis via PD-L1 induction[J]. J Hepatol, 2024, 80(4): 634–644.
[6]
Kryczek I, Liu J, Green M, et al. Liver metastasis restrains immunotherapy efficacy via macrophage-mediated T cell elimination[J]. Nat Med, 2021, 27(1): 152–164.
[7]
Liu Y, Zhang Q, Xing B, et al. Immune phenotypic linkage between colorectal cancer and liver metastasis[J]. Cancer Cell, 2022, 40(4): 424–437, e5.
[8]
Che LH, Liu JW, Huo JP, et al. Author correction: A single-cell atlas of liver metastases of colorectal cancer reveals reprogramming of the tumor microenvironment in response to preoperative chemotherapy[J]. Cell Discov, 2023, 9(1): 31.
[9]
Xu C, Gu L, Kuerbanjiang M, et al. Adaptive activation of EFNB2/EPHB4 axis promotes post-metastatic growth of colorectal cancer liver metastases by LDLR-mediated cholesterol uptake[J]. Oncogene, 2023, 42(2): 99–112.
[10]
Zheng Y, Zhou R, Cai J, et al. Matrix stiffness triggers lipid metabolic cross-talk between tumor and stromal cells to mediate bevacizumab resistance in colorectal cancer liver metastases[J]. Cancer Res, 2023, 83(21): 3577–3592.
[11]
Wang Y, Zhong X, He X, et al. Liver metastasis from colorectal cancer: pathogenetic development, immune landscape of the tumour microenvironment and therapeutic approaches[J]. J Exp Clin Cancer Res, 2023, 42(1): 177.
[12]
Shao D, Chen Y, Huang H, et al. LAG3 blockade coordinates with microwave ablation to promote CD8(+) T cell-mediated anti-tumor immunity[J]. J Transl Med, 2022, 20(1): 433.
[13]
Chen Y, Huang H, Li Y, et al. TIGIT blockade exerts synergistic effects on microwave ablation against cancer[J]. Front Immunol, 2022, 13: 832230.
[14]
Kerzel T, Giacca G, Beretta S, et al. In vivo macrophage engineering reshapes the tumor microenvironment leading to eradication of liver metastases[J]. Cancer Cell, 2023, 41(11): 1892–1910, e10.
[15]
Barreby E, Chen P, Aouadi M. Macrophage functional diversity in NAFLD-more than inflammation[J]. Nat Rev Endocrinol, 2022, 18(8): 461–472.
[16]
Donadon M, Torzilli G, Cortese N, et al. Macrophage morphology correlates with single-cell diversity and prognosis in colorectal liver metastasis[J]. J Exp Med, 2020, 217(11): e20191847.
[17]
Wang Z, Kim SY, Tu W, et al. Extracellular vesicles in fatty liver promote a metastatic tumor microenvironment[J]. Cell Metab, 2023, 35(7): 1209–1226, e13.
[18]
Xiong FQ, Zhang W, Zheng C, et al. Gemcitabine-loaded synthetic high-density lipoprotein preferentially eradicates hepatic monocyte-derived macrophages in mouse liver with colorectal cancer metastases[J]. Acta Pharmacol Sin, 2023, 44(11): 2331–2341.
[19]
Giguelay A, Turtoi E, Khelaf L, et al. The landscape of cancer-associated fibroblasts in colorectal cancer liver metastases[J]. Theranostics, 2022, 12(17): 7624–7639.
[20]
Zhang Y, Liu G, Zeng Q, et al. CCL19-producing fibroblasts promote tertiary lymphoid structure formation enhancing anti-tumor IgG response in colorectal cancer liver metastasis[J]. Cancer Cell, 2024, 42(8): 1370–1385, e9.
[21]
Chen Z, Zhang G, Ren X, et al. Cross-talk between myeloid and B cells shapes the distinct microenvironments of primary and secondary liver cancer[J]. Cancer Res, 2023, 83(21): 3544–3561.
[22]
Li X, Pan J, Liu T, et al. Novel TCF21(high) pericyte subpopulation promotes colorectal cancer metastasis by remodelling perivascular matrix[J]. Gut, 2023, 72(4): 710–721.
[23]
Kato K, Noda T, Kobayashi S, et al. KLK10 derived from tumor endothelial cells accelerates colon cancer cell proliferation and hematogenous liver metastasis formation[J]. Cancer Sci, 2024, 115(5): 1520–1535.
[24]
Masui H, Kawada K, Itatani Y, et al. Synergistic antitumor activity by dual blockade of CCR1 and CXCR2 expressed on myeloid cells within the tumor microenvironment[J]. Br J Cancer, 2024, 131(1): 63–76.
[25]
Qu Y, Wang X, Li J, et al. TAMs-derived SPP1, regulated by HIF-1α/STAT3 signaling pathway, influences colorectal cancer malignant progression by activation of EMT via integrin αvβ3[J]. Int Immunopharmacol, 2025, 159: 114947.
[26]
Li JJ, Wang JH, Tian T, et al. The liver microenvironment orchestrates FGL1-mediated immune escape and progression of metastatic colorectal cancer[J]. Nat Commun, 2023, 14(1): 6690.
[27]
Ding D, Li W, Ren J, et al. SPP1(high) macrophage-induced T-cell stress promotes colon cancer liver metastasis through SPP1/CD44/PI3K/AKT signaling[J]. J Immunother Cancer, 2025, 13(10): e012330.
[28]
Chang J, Niu Y, Zhou S, et al. DAPK1-positve macrophages facilitate immunosuppressive microenvironment and determine immunotherapy efficacy in colorectal cancer[J]. J Transl Med, 2025, 23(1): 1220.
[29]
Sun G, Zhao S, Fan Z, et al. CHSY1 promotes CD8(+) T cell exhaustion through activation of succinate metabolism pathway leading to colorectal cancer liver metastasis based on CRISPR/Cas9 screening[J]. J Exp Clin Cancer Res, 2023, 42(1): 248.
[30]
Huang S, Ding D, Lan T, et al. Multifunctional nanodrug performs sonodynamic therapy and inhibits TGF-β to boost immune response against colorectal cancer and liver metastasis[J]. Acta Biomater, 2023, 164: 538–552.
[31]
Öcal E, Alunni-Fabbroni M, Piseddu I, et al. Immune modulation in untreated, contralateral hepatic metastases after Yttrium-90 radioembolization of microsatellite stable colorectal cancer[J]. J Vasc Interv Radiol, 2024, 35(12): 1793–1805, e4.
[32]
金杯, 张晔昱, 潘景轩. 肝脏微环境细胞在肿瘤肝定植转移过程的作用及意义[J]. 四川大学学报(医学版), 2023, 54(3): 469–474.
[33]
Zhou X, Yang M, Yu J, et al. Regional delivery of mesothelin-targeted chimeric antigen receptor T-cell effectively and safely targets colorectal cancer liver metastases in mice[J]. J Gastrointest Oncol, 2024, 15(1): 312–329.
[34]
Wang J, Liu C, Wang P, et al. Bioengineered tumor-derived extracellular vehicles suppressed colorectal cancer liver metastasis and bevacizumab resistance[J]. Adv Sci (Weinh), 2025, 12(23): e2417714.
[35]
Zhou L, Zhang Y, Wei M, et al. Comprehensive analysis of CXCL14 uncovers its role during liver metastasis in colon cancer[J]. BMC Gastroenterol, 2023, 23(1): 273.
[36]
Tao B, Yi C, Ma Y, et al. A novel TGF-β-related signature for predicting prognosis, tumor microenvironment, and therapeutic response in colorectal cancer[J]. Biochem Genet, 2024, 62(4): 2999–3029.
[37]
Shi M, Yang Y, Huang N, et al. Genetic and microenvironmental evolution of colorectal liver metastases under chemotherapy[J]. Cell Rep Med, 2024, 5(12): 101838.
[38]
Long L, Xiong W, Lin F, et al. Regulating lactate-related immunometabolism and EMT reversal for colorectal cancer liver metastases using shikonin targeted delivery[J]. J Exp Clin Cancer Res, 2023, 42(1): 117.
[39]
Niu Y, Zhao X, Li Y, et al. Neutrophil-mimicking nanomedicine eliminates tumor intracellular bacteria and enhances chemotherapy on liver metastasis of colorectal cancer[J]. Adv Sci (Weinh), 2025, 12(30): e04188.
[40]
Zheng S, He H, Zheng J, et al. Machine learning-based screening and validation of liver metastasis-specific genes in colorectal cancer[J]. Sci Rep, 2024, 14(1): 17679.
[41]
Liu S, Zhang Z, Wang Z, et al. SPP1 drives colorectal cancer liver metastasis and immunotherapy resistance by stimulating CXCL12 production in cancer-associated fibroblasts[J]. Cancer Res, 2026, 86(1): 58–79.
